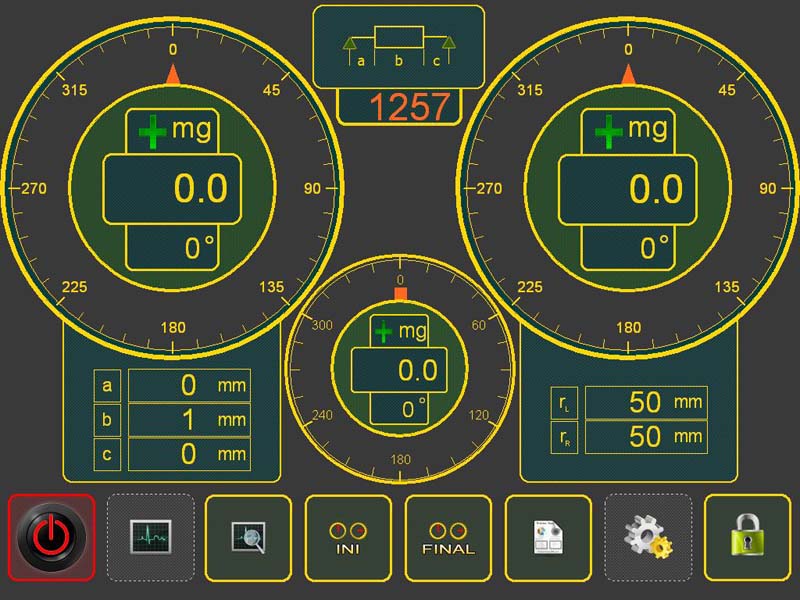

RoTouch–12 measuring electronics is a processor-based industrial controller designed for balancing machines. Results are displayed numerically and graphically, optimised for simple and fast operation.
Core platform
- PC module — 32-bit RISC CPU at 800 MHz;
- stable +24 V power supply;
- acquisition card — 8 channels, 16-bit ADC, RAM/ROM, developed by RoTech;
- 12.1-inch TFT monitor;
- connections — 3-channel pulse input and 2-channel analogue input;
- robust metal enclosure, dimensions 460 × 420 × 400 mm.

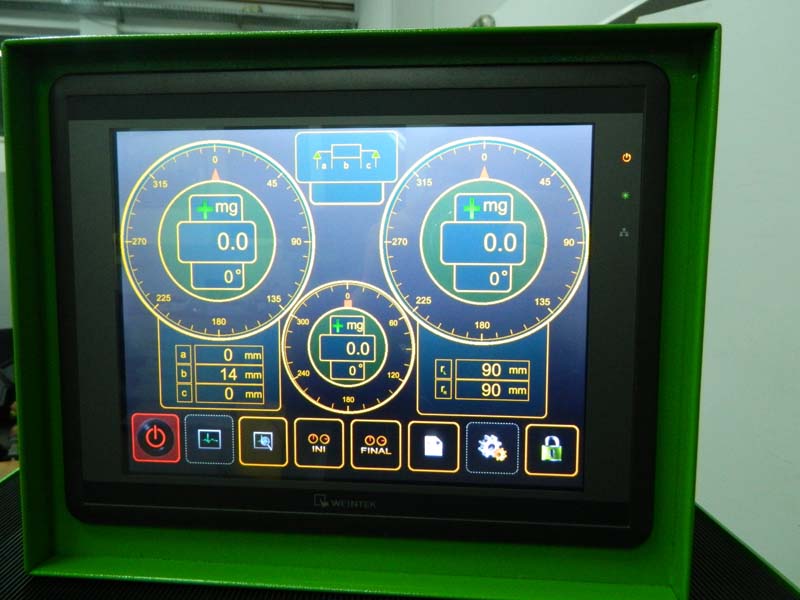

In addition to the signal-acquisition and process-control module, the measuring electronics incorporates a graphical touch-sensitive TFT monitor for communication with the operator.
