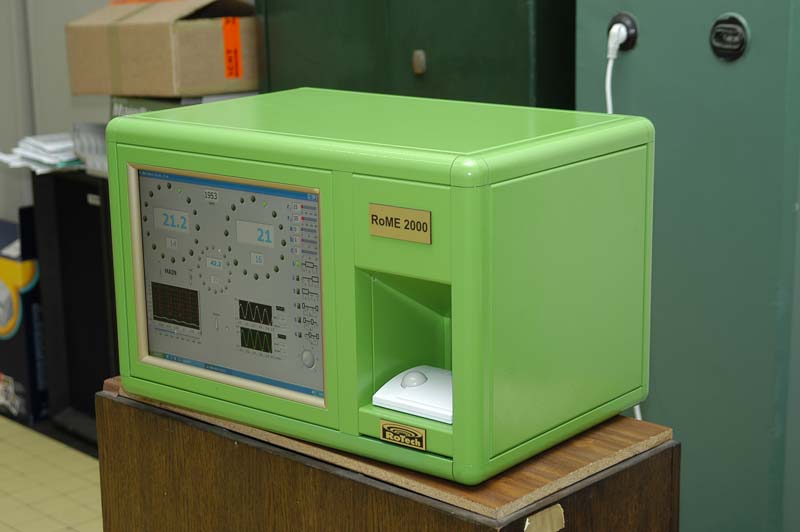

Universal measuring electronics for RoTech balancing machines.
- architecture: Pentium platform;
- keyboard, trackball, and printer;
- RoTech signal-conditioning module;
- storage medium: 2 GB solid-state disk;
- software: Windows XP Embedded and LabVIEW;
- input: 2 channels for piezoelectric sensors;
- 3 digital lines for an encoder or photocell;
- output: HP 1006 printer.
Functions
- digital parameter entry and configuration storage;
- tolerance setting in accordance with ISO 1940;
- electronic calibration;
- result archiving;
- report generation and printing.

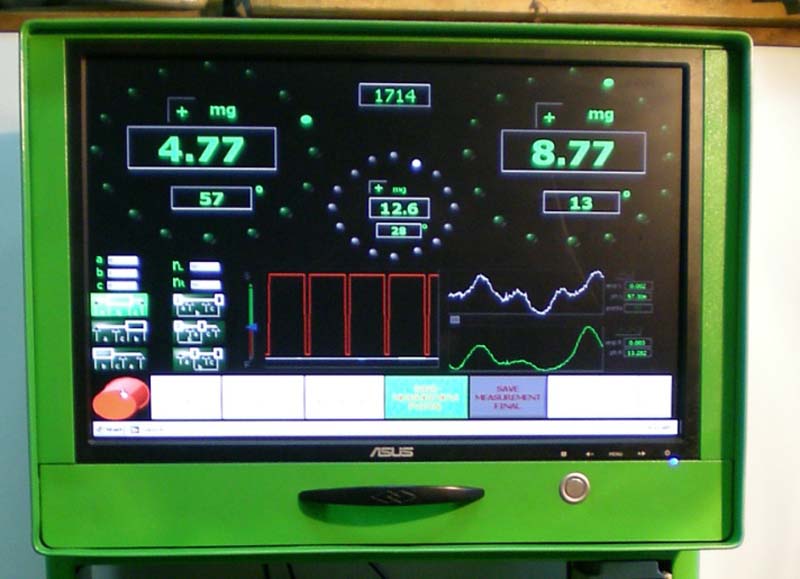

Measurement modules
- oscilloscope monitoring of source signals;
- numerical and graphical display of unbalance;
- automatic error detection during measurement;
- dedicated display of the resultant unbalance vector.
